__________________________________Reed frames

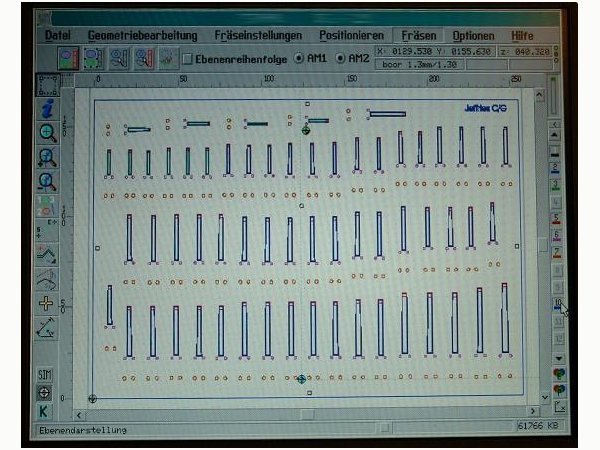

          1: programming the customized CNC

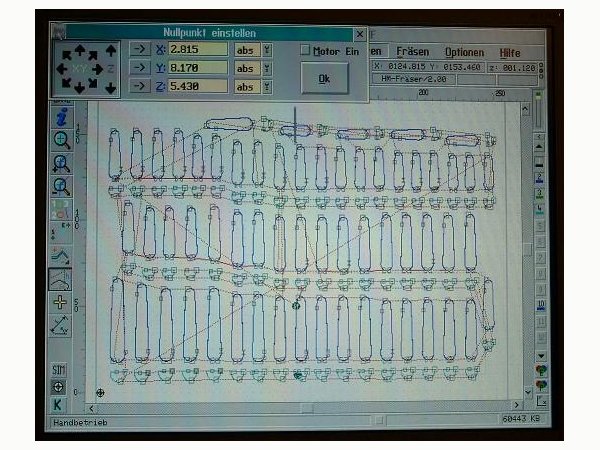

          2: Cutting path

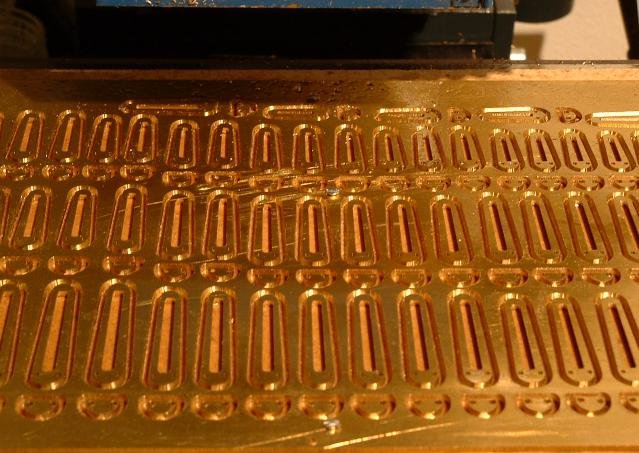

          3: Reed slots and vents, accuracy: 0.002"

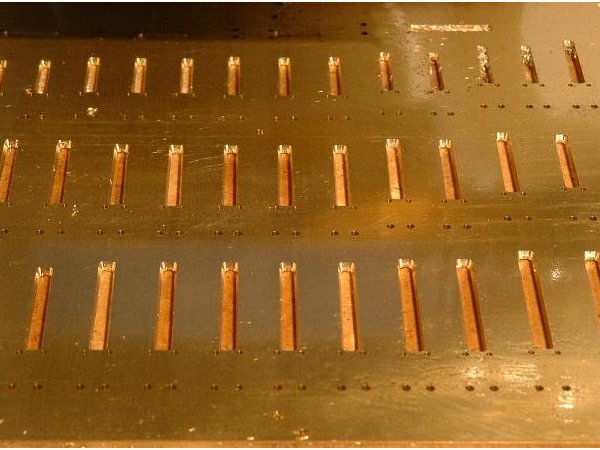

          4: Top of the reed frames

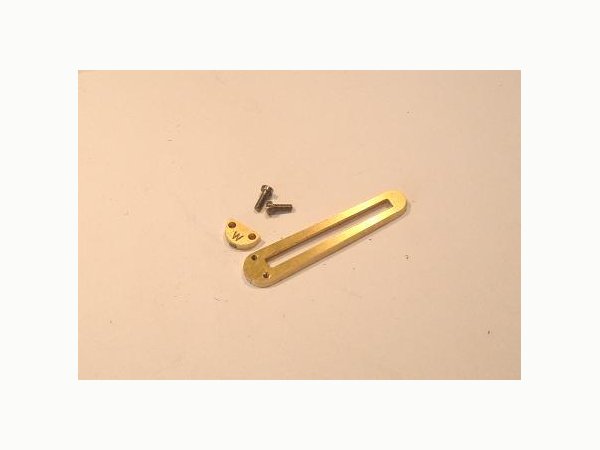

          5: Reed frame, clamp and screws

          6: Assembled, ready to accept the steel reed
       ____________________________________Steel reeds

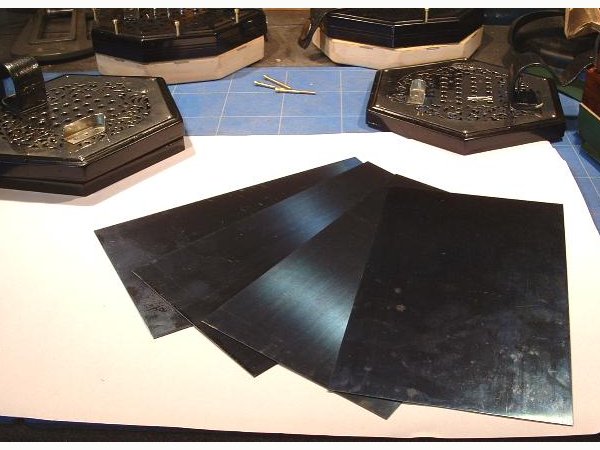

          7: Selected vocal steel

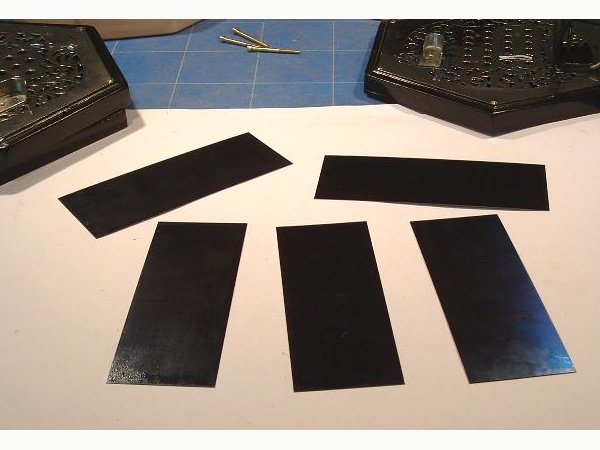

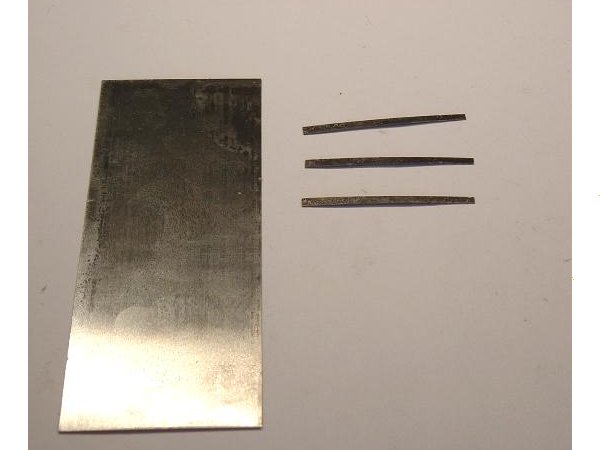

          8: Steel cut to size

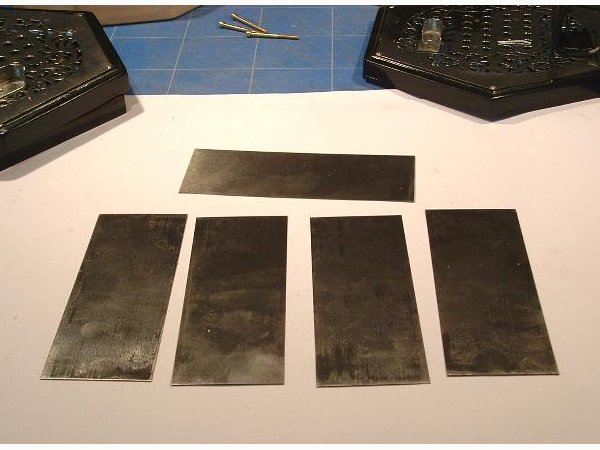

          9: After reed profile grinding

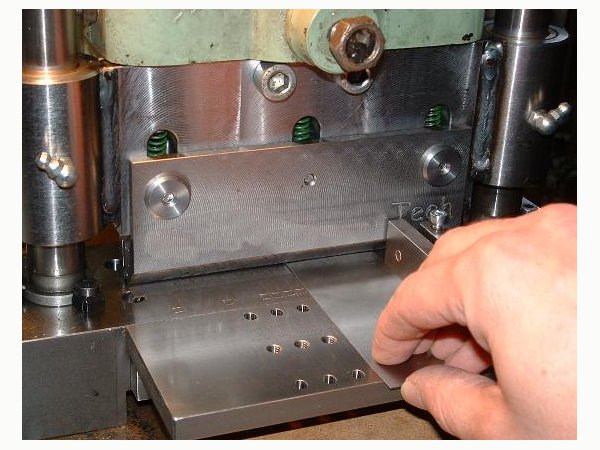

          10: Cutting the reeds, accuracy: 0.002"

          11: Reeds ready for assembling

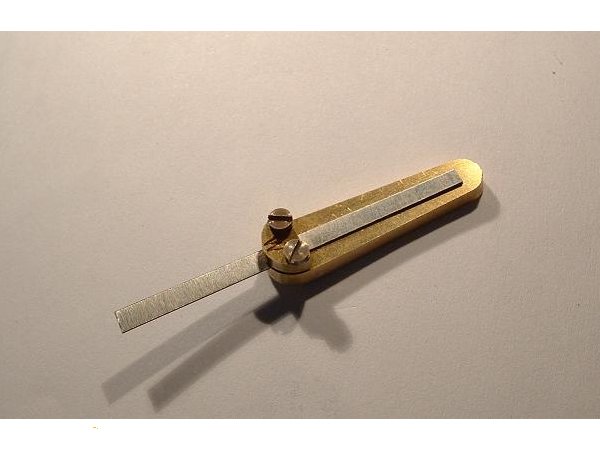

          12: Brass reed frame with steel reed
        _____________________________________
