making of

This is a photo reportage of the making of a Wakker anglo.

Instrument specifications:

Model: W-A2-drone (30+1 keys). Layout: Jeffries C/G
French walnut raised ends
Long scale reeds (steel tongues in individual brass frames)
Domed metal keys/delrin® cores
6 fold bellows
Weight: 1.02 Kg / 2 lb. 4 oz.

Optional features:

open fretwork, wide angle reed frames.
button height: 2mm (irish).

1 2 3 4 5 6 7 8 9

________________________________Raw Materials

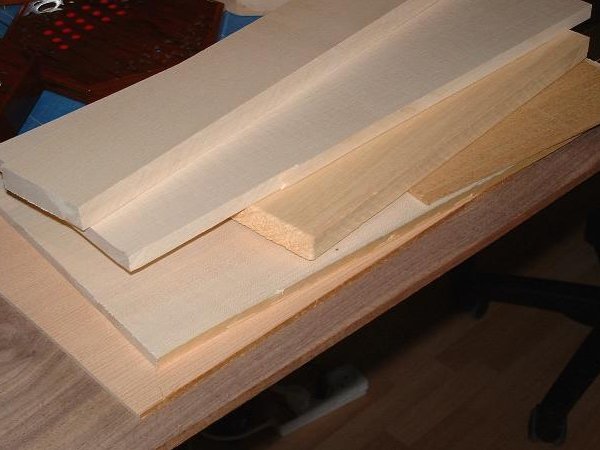

          1: The woods are cut and sanded to the required size/thickness;
               French Walnut, spruce, Ayous, quarter cut European maple
               and hard maple.

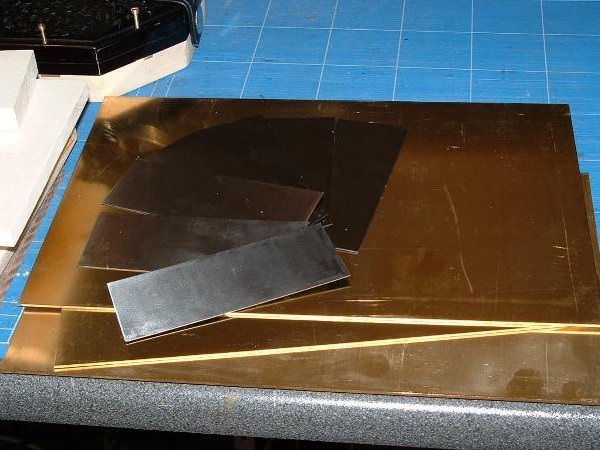

2: The brass and steel needed for the action, reed frames and reeds.

_________________________________Parts

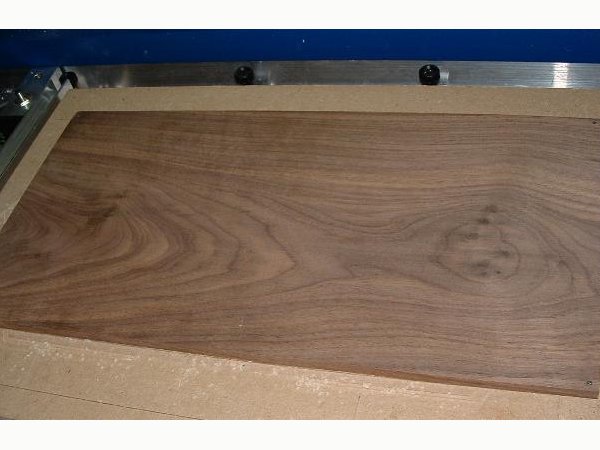

3: French Walnut for the ends

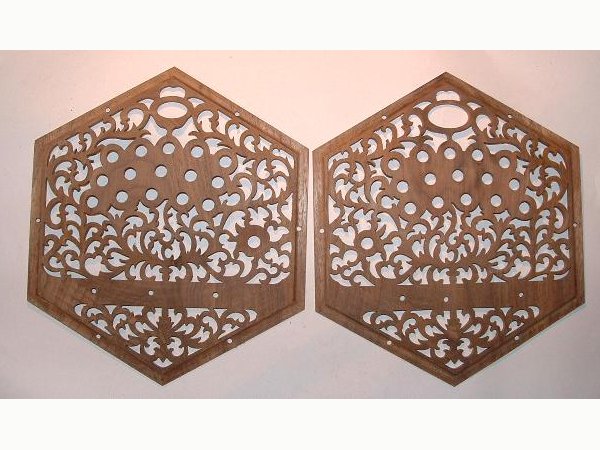

4: Raised ends

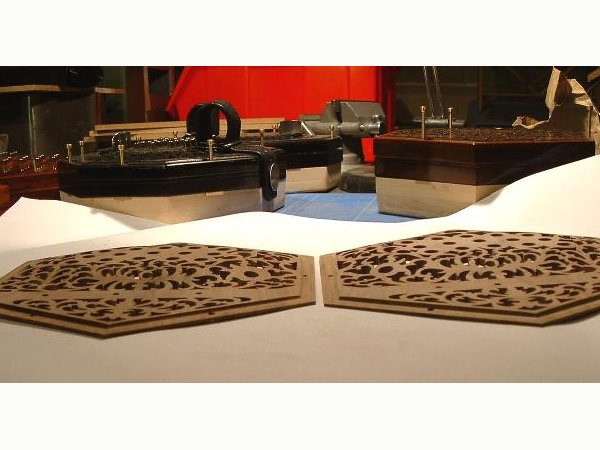

5: Raised ends, side view

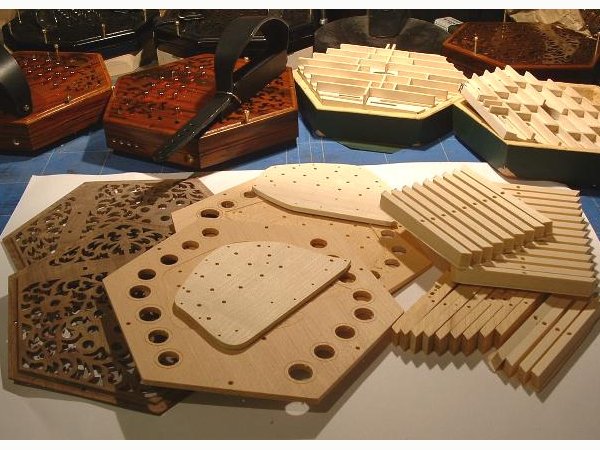

6: Parts
_________________________________Assembly

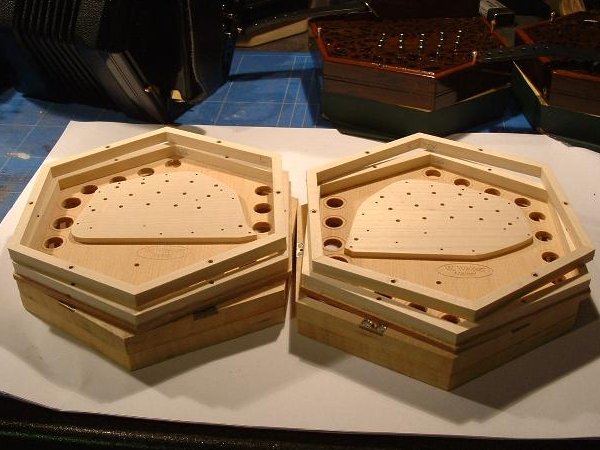

7: Action boards, bellows frames and frame parts

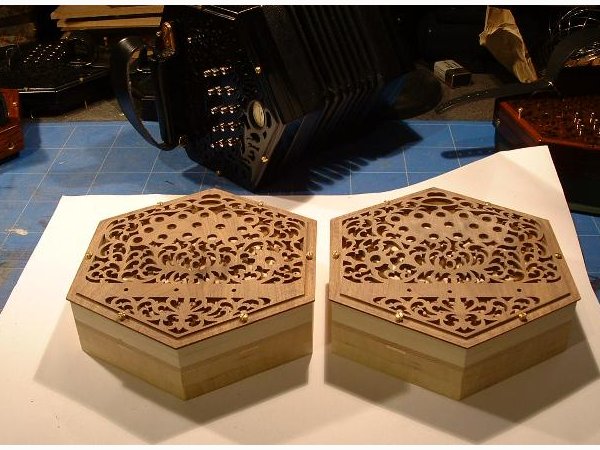

8: Ends, fully assembled

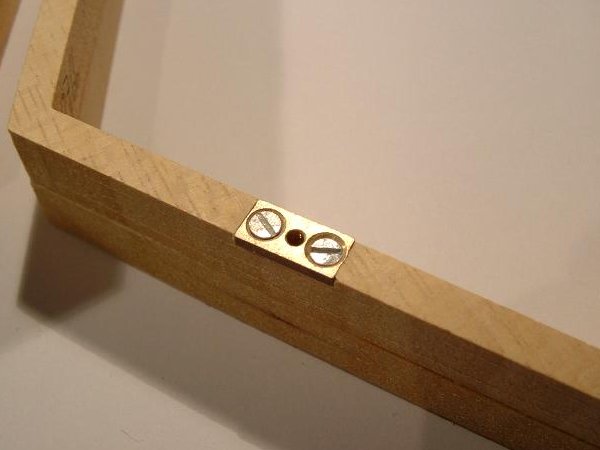

9: Brass insert in the bellows frame
_________________________________
